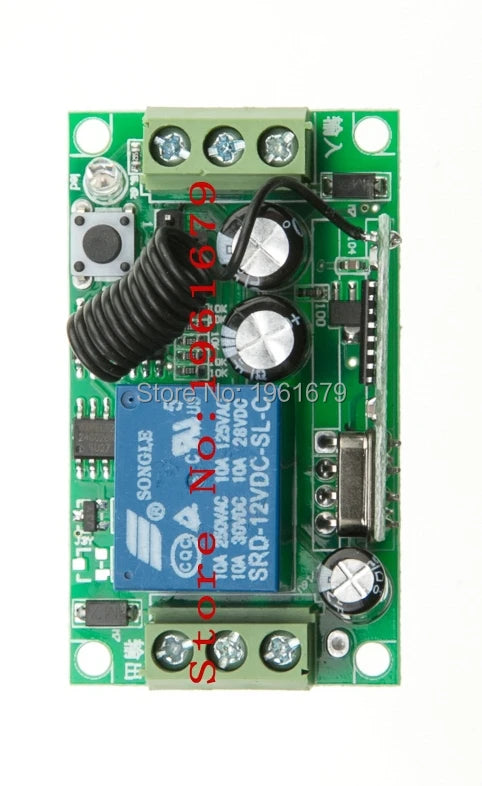

DC 12 V RF wireless remote control switch 1 channal Intelligent family system 4 pcs receiver+2 pcs waterproof transmitter

Application range:

This product is typically applied to the multi-channel electric doors and windows, ordinary electronic lock, switch, electric garage door, window, hoisting equipment ,industrial automation and control, all kinds of anti-theft alarm ,security and other fields .The remote controller supports the use of forming a complete set of wireless intelligent remote control system .It has a wide range of uses.

Specifications:

Operating Voltage: DC12V

Operating Current: 6Ma

Operating Frequency: 315,433 MHz (Frequency can be adjusted, if there is no information, will be a 315 MHZ)

Operating Temperature: -10C ~ +60C

Receiver Sensitivity: -105dBm

Output Voltage: AC / DC (optional)

Output Current: 10A

Code :Learning code .

Size: 55*32*16mm

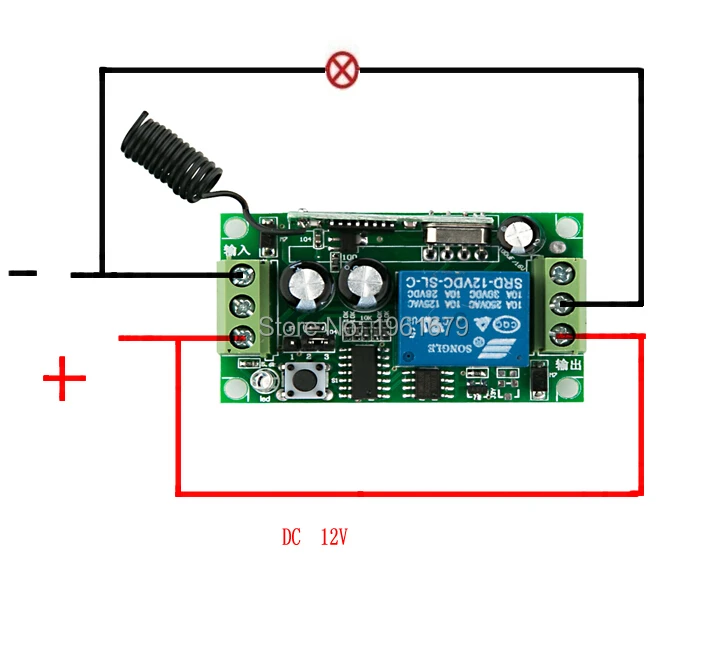

Output working way:

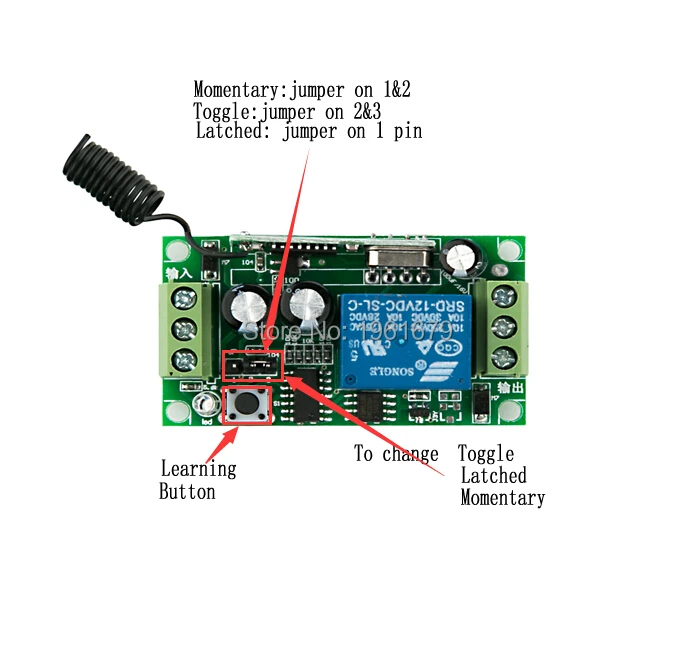

Self-locking: Connect the jumper 1 with the cutting out cap. ( Self-locking control mode :Press the switch is on the load, press the same switch again is to disconnect the load .Need one channel switch and a one-button remote controller.)

Jog---The cutting out cap is not occupied, jumper 1 and jumper 2 do not connect either. Press the switch is on the load ,loosen is to disconnect the load. Also need one channel switch and a one-button remote controller.)

Inter-lock------- Connect the jumper 2 with the cutting out cap (Press one switch is on the load , press another switch is to disconnect the load . (Need one channel switch and 2-button remote controller.)

Learning and removing method:

1 .There is a learning button on the control panel of touch switch, the button is used to learn and remove the code.

2 .Press and hold the learning button for three seconds. When the indicator light flashes, we enter the learning state. Press any key on the remote controller to emit signal, the light flashes two times and off .It means you learn it successfully.

3 .It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote controller.

4. Delete remote control method: hold down the learning button for about 8 seconds, the indicator light turns on to off, then the code you learned before will be deleted.

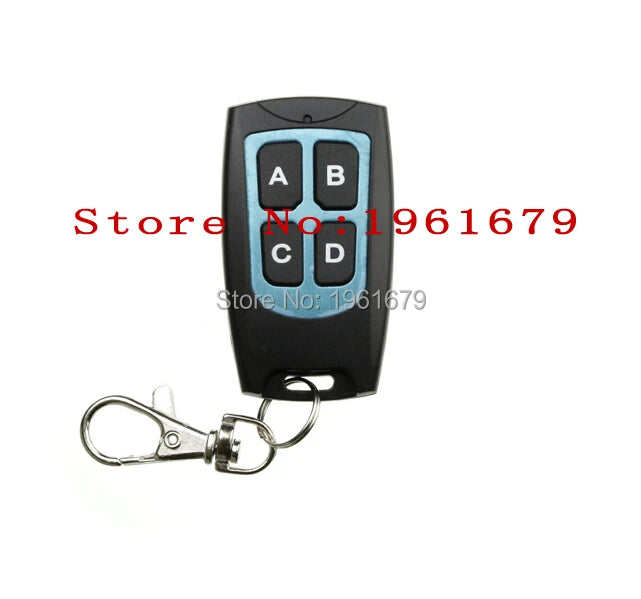

Wireless remote control

metal shell wireless rf remote control
1.Working Voltage:DC12V
2.Operating Current:16MA
3.Transmitting distance :20-200M

Working voltage DC12V
Operating Current 16MA
Operating frequency 266-433MHZ
Transmitting distance: 180 meters
Encoding way: Fixed code, learning code,
IC chipset: PT2260 ,PT2240,EV1527,

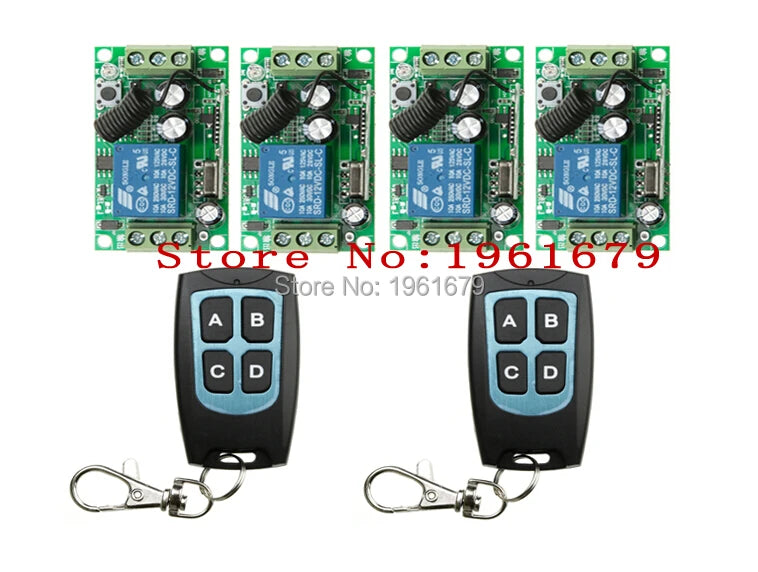

Package Include:

   4 x Receiver

   2x Transmitter
