KYNO

DC 12 v mini wireless remote control switch 1channal Intelligent family system 1X receiver+2X waterproof transmitter JRL-022

£2599
£1699

DC 12 v mini wireless remote control switch 1channal Intelligent family system 1X receiver+2X waterproof transmitter



Operating Voltage: DC12V

Operating Current: ≤ 6Ma

Operating Frequency: 315,433 MHz

Operating Temperature: -40°C ~ +80°C

Receiver Sensitivity: ≥-105dBm

Output Voltage: AC / DC (optional)

Output Current: ≤ 10A

Code :Learning code .(jog/Non-Latched .inter-lock/Latched .self-lock /Self Latched )

Size: 35MM*32MM*17MM

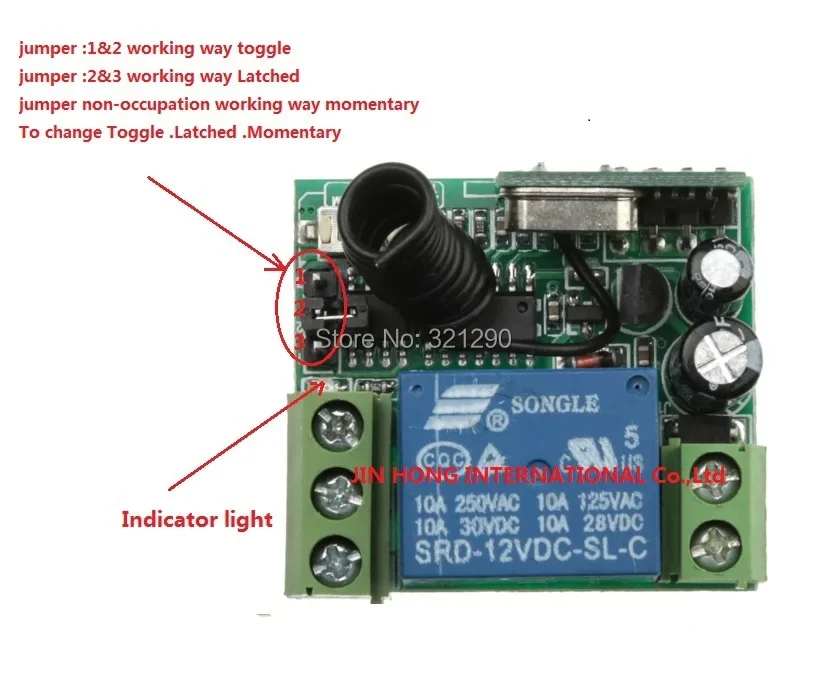

Output working way:



Jog/Non-Latched: press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control



Self -lock/Self-Latched: press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control



Inter-lock /Latched : press one button is working/ON ,press another button is stop/OFF . ( one channel switchneed 2 buttons remote control )



Learning Method:

Press the learning button3 seconds, the indicator light off .then you press any buttons of the remote control to transmite signal . it means studying successfully when the indicator flash 3 times until the indicator light on.


Remove code:



press the learning button about 8 seconds , the indicator turn on to off to on , it means the information that you keep have been removed successfully .



Package Include:

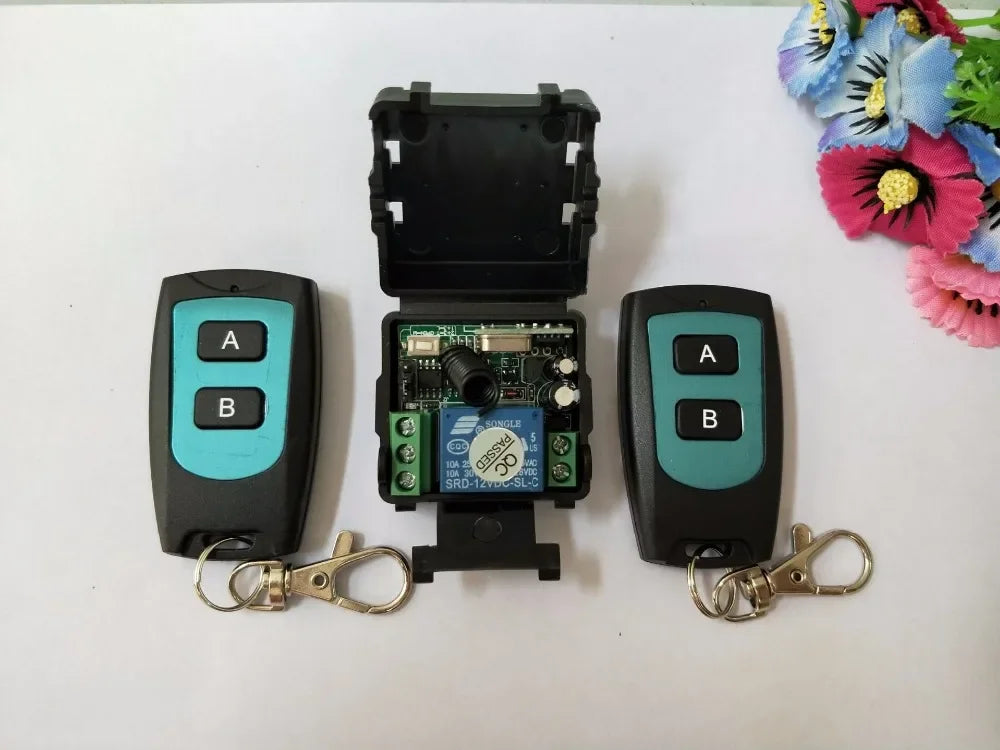

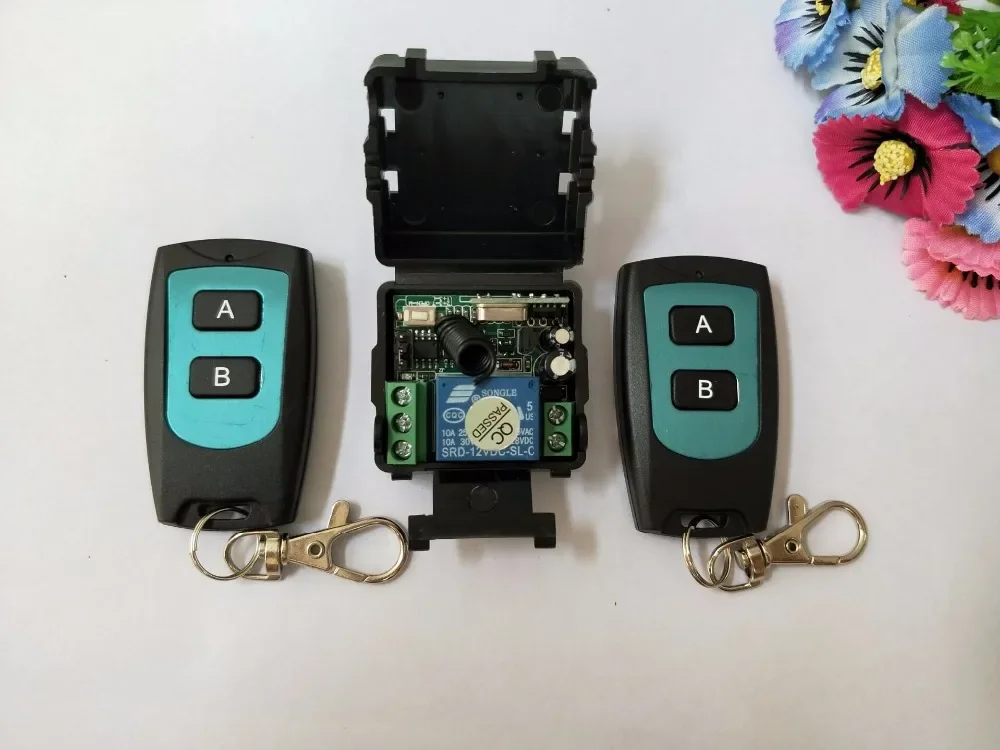

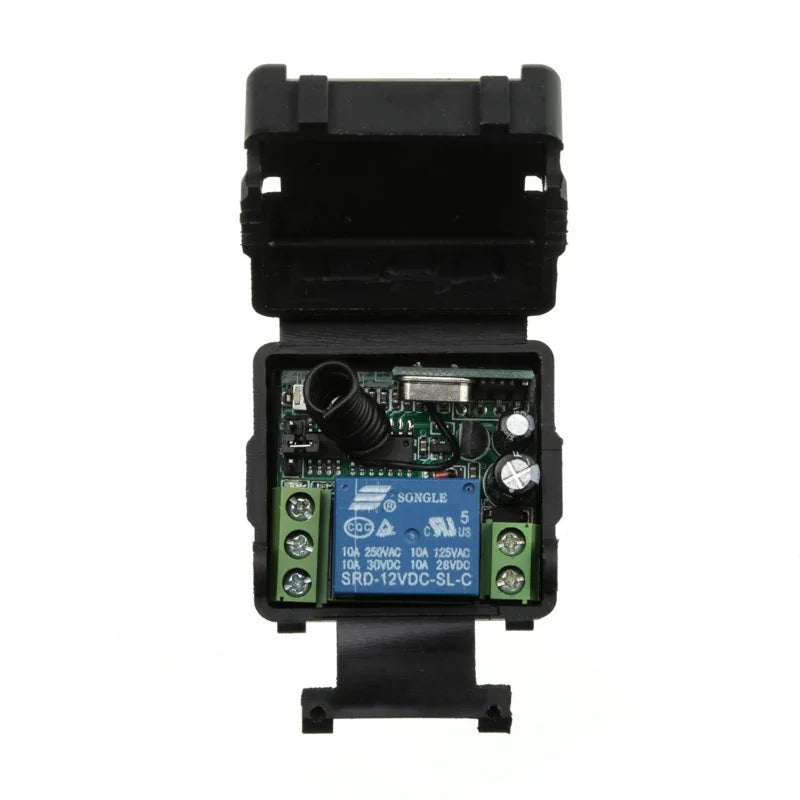

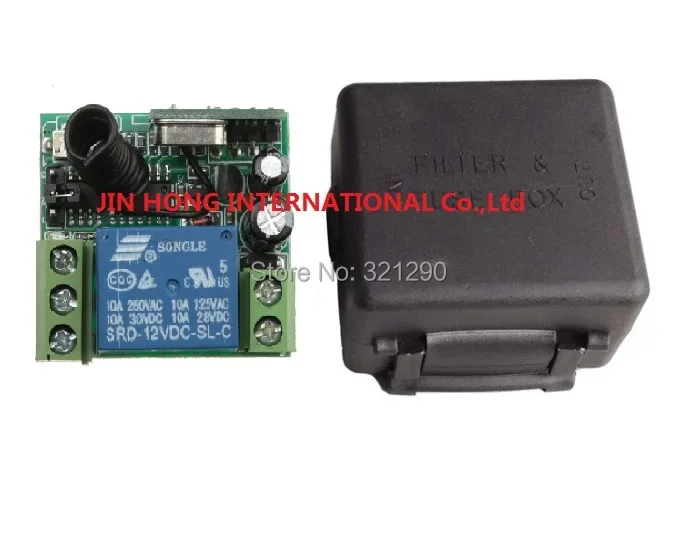

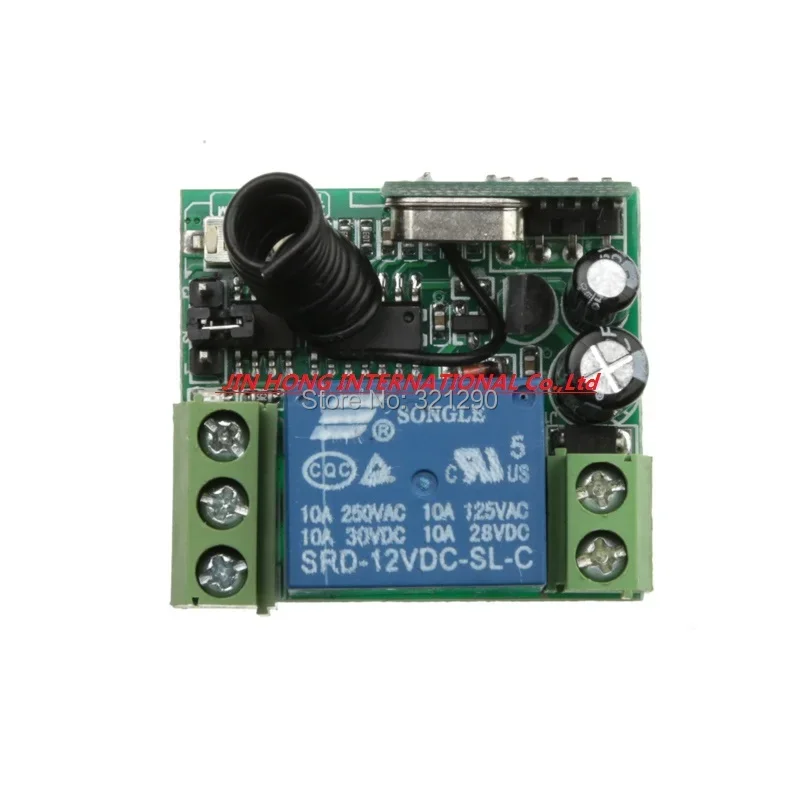

1 x Receiver(with cover)

2x Transmitter(with battery)

QQ20170818222856

6.jpg7.jpg5.jpg4.jpg.jpg (2).jpg.jpg55.jpg20151213-IMG_2620.jpg20151213-IMG_2626.jpg
