47596270190928
  • 47596270190928

KYNO

Yanling15 Inch Taiwan Fanless 5 Wire Resistive Touch Screen AIO Computer Intel J1900 Industrial All-in-one PC with 2 RS232 COM

£83699
£69799

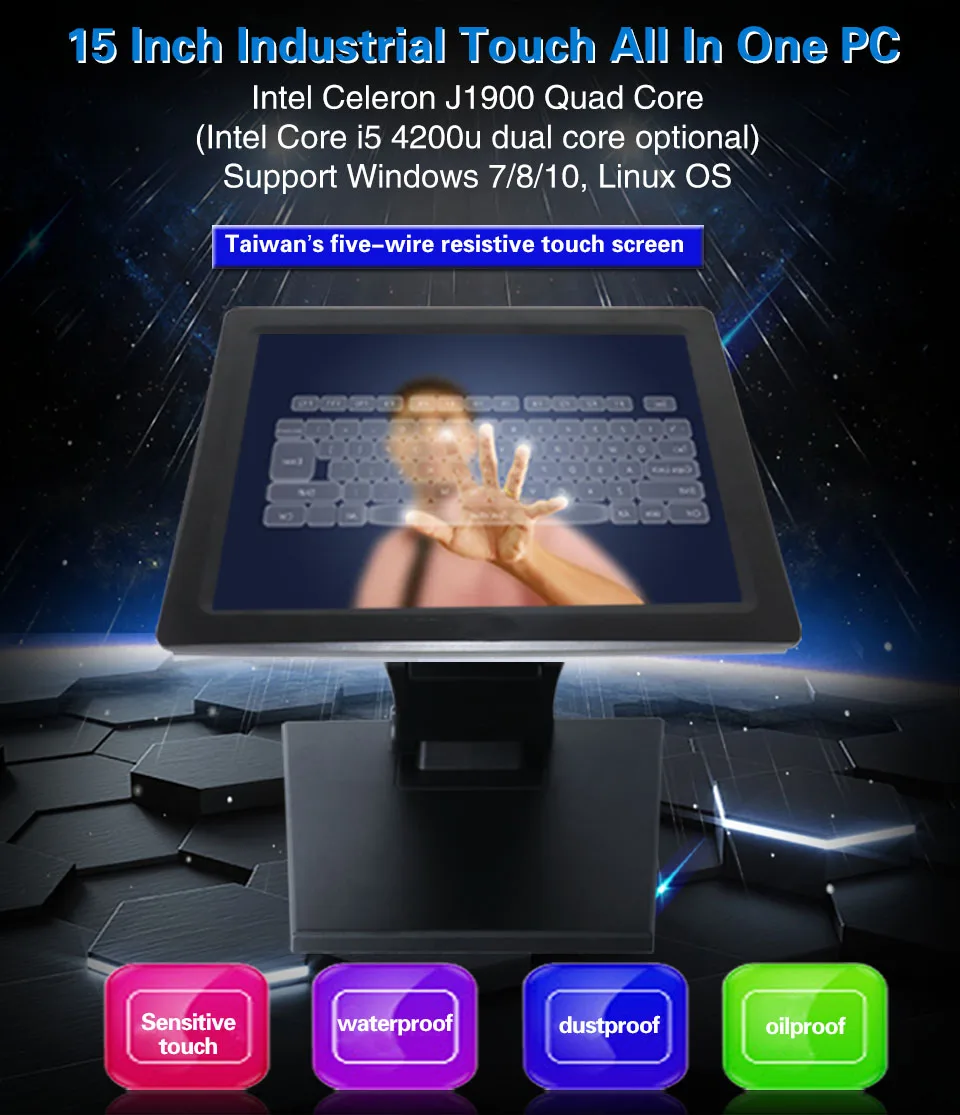

Yanling 15 Inch Taiwan Fanless 5 Wire Resistive Touch Screen AIO Computer Intel J1900 Industrial All-in-one PC with 2 RS232 COM


Warm tips: This products price are not included Ram, Hard disk, Wifi card, WiFi antennas and Bluetooth, if you need them, you need to pay extra fee, please contact us to change the price. Thanks.
And If you need other Configuration of ram and hardisk, please contact us.

For now,European buyers(included UK) have to pay customs fee and VAT,so please tell us your VAT number or ID number or passport number.thank you.

1. This computer only works with RAM at lower voltage 1.35V instead of normal 1.5V RAM.
2. The RAM and SSD/HDD are from famous brand,the RAM is normally Kingston,Sam'sung, etc.
The SSD is normally from Hoodisk, Biwin, FORESEE, Sam'sung, ADATA, SanDisk, etc. they will be shipped out at random for stock.
3. Barebone system means no ram no storage, and we won't install OS to you .
4. The Operating System is just for testing , copied but NOT activated and not licensed, please install the licensed one by yourself if you prefer.   All of our products  don't support Windows XP  OS, please know it.
5. About customs fees , we are not responsible for buyer's customs taxes or VAT . We will declare true value by default. If you need us to offer an invoice, please leave a message . Pls do not open a dispute or give us a bad feedback due to the extra importing fees, otherwise pls do not buy it, thanks.
6. Please carefully read the SHOPPING GUIDELINES on the bottom of this page. It is regarded as you have agreed all listed when you place an order. We won't take responsibility for any problems might caused except the quality problem of the product.
Thank you !


Model

ITPC-A150 Fanless All In One PC

Brand Name

Yanling

Case Color

Black(color can be customized, more details please contact us)

Case Material

High-quality pure aluminum chassis

CPU

Intel Celeron J1900 Quad Core 1.99Ghz, (Core I5 4210U/4300u dual core 2.7Ghz optional)

Ram

Support 1*DDR3L 1333/1600Mhz Ram Slot, Max Support 8G (2G/4G/8G optional)

Storage

Support 1*MSATA , 1*2.5'' SSD/HDD (16G/32G/64G/128G/500G/1TB optional)

Audio

1*Audio, 1*MIC

Display Port

1*VGA, 1*HDMI, 1*LVDS

Display Chip

Integrated Intel HD Graphic card

Network Card

J1900 CPU : 1* Realtek 8111E 1000M Lan ( 2*Lan is optional)

I5-4210u CPU: 1*Intel i211-AT 1000M Lan

I5-4300u CPU: 2*Intel i211-AT 1000M Lan


I/O

1*USB3.0, 3*USB2.0

1*VGA, 1*HDMI

2*RS232 COM Port (6*RS232 COM Optional)

1*Intel Lan, 1*MIC, 1*Line Out

1*Power Switch

1*DC-IN 12V

Touch Screen

Size：15 inch
Ratio：4：3
Resolution：1024 * 768
Brightness ：250cm/m2

Resistive type Touch screen(single Point Touch)，Life time: over 50 Millions

Power Supply

DC 12V (9~36V input optional)

Operating System

Support Windows 7/8/10, Linux

Working Temperature

-10degC - +50degC

Working Humidity

0% - 95% relative humidity, Non-condensing

Size

365*290*55 mm (L*W*H)

Application

Applied inAutomation, ATM, Pos, CNC, Digital signage, kiosk, Energy, telecomommunication, Networking,Transportation etc.

Yanling 15 Inch Taiwan Fanless 5 Wire Resistive Touch Screen AIO Computer Intel J1900 Industrial All-in-one PC with 2 RS232 COM


Pls tell us which power cable you want, thanks


YANLING INDUSTRIAL COMPUTER TECHNOLOGY (SHENZHEN) CO.,LTD is an officially registered and approved large-scale resource-based enterprise, forcus on research and design, producing, processing, marketing and distribution. Main products cover MINISYS mini pc, MINISYS industrial computer, MINISYS embedded pc, all in one pc and network server etc. Our products are widely used in home, office, school, industrial automation, network security, digital signage, transportation, energy, airport, ATM, medical equipment, monitoring etc.

We have established cooperation with lots of enterprises, rely on our strength, reasonable price, excellent service, over 10 years rich experience in R&D and producing. Our products are popular at home and aboard, and our partners are all over the world.

1. According Newest Aliexpress Business Service Agreement informs all products should be showed real price to customs because buyers are responsible for paying tax involved, such as import tax, VAT, etc.
2. Due to the tax problem , buyer refuse to receive the goods, buyer need to responsible for the freight back and forth. Thank you for your cooperation.
3. According to customs rules in Russia , we have to write real price to customs.and buyer have to offer passport information , personal VAT number and link of product to local customs for clearance . Thanks.
4. For German customers, please note that German custom decide to implement the single customs clearance costs for e-commerce goods from Mar.1 2018 . Deutsche Post DHL will charge an additional fee of 6 EUR / set (including VAT) for taxable and hospitality tax on incoming mail.
5. For Swedish customer, please note that the Swedish Customs decided to impose VAT on all non-EU e-commerce items (including mail) starting March 1, 2018 . The implementation of zero-value-added tax threshold, does not distinguish between the level of value, the recipient VAT. If the value of the goods is less than 150 euros , Sweden Post will charge 7.5 euros for services, more than 150 euros, for 12.5 euros service charges e-commerce items.
6. For Brazil customer, please note that the Brazil Customs decided to charge a fee of 15 reais (about 3.5 US dollars) per order for all international parcels handled by the customs from August 27 , local time.You have to pay it within 30 days , otherwise the package will be returned or destroyed . For that, we wont do money refund.
1. We prefer payment through ESCROW which is security way for you.
2. Pls make sure the shipping address , zip code and tel-number are correct before payment.
3. The buyers are responsible for all additional custom fees, brokerage fees, duties and taxes for importation into your country.
4. We also can accept the payment by Paypal if you think Paypal is convenient for you to order. But now only can ship to USA, UK, Italy, Spain, France, Germany .
5. Welcome to contact us by chat tool directly or leave a message if you order in bulk.
6. Refund will be done by Paypal.
1. All items will be double checked and well packed and they will be dispatched within 5 business days when order is paid.
2. Normally we ship package by DHL , it will take about 3~7 working days to most of countries, door to door.
3. If you address is a remote area by DHL, if you do not add remote area shipping fee , we will arrange shipment by our methods , hope you can kindly understand it, thanks.
4. e-EMS: it is for Russia and some other countries.
5.If you choose the shipping way is air post mail , it normally takes 30-90 days without tracking information , pls noticed. It's better to chooseEMS or DHL , more faster and safe .
6. If you don't get the package in normal time, please contact us kindly, we will do our best to assist you.
7. If you don't accept above terms, pls do not buy it, thanks.
1. We provide one year warranty period, repair or replace for free; the second year and the third year , we can repair it free . but we will charge for the parts that need to change.
2. If you are not satisfied with the item and want to return it reasonably, please contact us kindly first . We will try our best to deal with the issue for you or you can exchange or return the item in one week.
3. All returned items must be in its original conditions . Anthropogenic causes as defects are not guaranteed.
4. If you want to return the item, pls confirm the return address with us, we only accept EMS or Post for return product. Thanks.
5. If the product break down , please contact us .
1. We maintain high standards of excellence and strive for 100%customer satisfaction !
2. If you are satisfied with them, please lease 5 star positive feedback
3. Negative feedback or low DSR does no resolve any underlying issues. If you have a problem , please contact us via email firstly and give us the opportunity to reasonably rectify in a reasonable amount of time. We will try to respond ASAP, and we are always willing to work things out.
4. For some uncontrollable factors , the item may be damaged during shipping. If you receive a broken item, please contact us first , we will investigate and replace, if you have any other questions please email us. we will respond within 24 hours or less .


Default Title:
£83699
£69799
47596270190928

Frequently Bought Together

Total price £71095

Product Description

Yanling 15 Inch Taiwan Fanless 5 Wire Resistive Touch Screen AIO Computer Intel J1900 Industrial All-in-one PC with 2 RS232 COM


Warm tips: This products price are not included Ram, Hard disk, Wifi card, WiFi antennas and Bluetooth, if you need them, you need to pay extra fee, please contact us to change the price. Thanks.
And If you need other Configuration of ram and hardisk, please contact us.

For now,European buyers(included UK) have to pay customs fee and VAT,so please tell us your VAT number or ID number or passport number.thank you.

1. This computer only works with RAM at lower voltage 1.35V instead of normal 1.5V RAM.
2. The RAM and SSD/HDD are from famous brand,the RAM is normally Kingston,Sam'sung, etc.
The SSD is normally from Hoodisk, Biwin, FORESEE, Sam'sung, ADATA, SanDisk, etc. they will be shipped out at random for stock.
3. Barebone system means no ram no storage, and we won't install OS to you .
4. The Operating System is just for testing , copied but NOT activated and not licensed, please install the licensed one by yourself if you prefer.   All of our products  don't support Windows XP  OS, please know it.
5. About customs fees , we are not responsible for buyer's customs taxes or VAT . We will declare true value by default. If you need us to offer an invoice, please leave a message . Pls do not open a dispute or give us a bad feedback due to the extra importing fees, otherwise pls do not buy it, thanks.
6. Please carefully read the SHOPPING GUIDELINES on the bottom of this page. It is regarded as you have agreed all listed when you place an order. We won't take responsibility for any problems might caused except the quality problem of the product.
Thank you !


Model

ITPC-A150 Fanless All In One PC

Brand Name

Yanling

Case Color

Black(color can be customized, more details please contact us)

Case Material

High-quality pure aluminum chassis

CPU

Intel Celeron J1900 Quad Core 1.99Ghz, (Core I5 4210U/4300u dual core 2.7Ghz optional)

Ram

Support 1*DDR3L 1333/1600Mhz Ram Slot, Max Support 8G (2G/4G/8G optional)

Storage

Support 1*MSATA , 1*2.5'' SSD/HDD (16G/32G/64G/128G/500G/1TB optional)

Audio

1*Audio, 1*MIC

Display Port

1*VGA, 1*HDMI, 1*LVDS

Display Chip

Integrated Intel HD Graphic card

Network Card

J1900 CPU : 1* Realtek 8111E 1000M Lan ( 2*Lan is optional)

I5-4210u CPU: 1*Intel i211-AT 1000M Lan

I5-4300u CPU: 2*Intel i211-AT 1000M Lan


I/O

1*USB3.0, 3*USB2.0

1*VGA, 1*HDMI

2*RS232 COM Port (6*RS232 COM Optional)

1*Intel Lan, 1*MIC, 1*Line Out

1*Power Switch

1*DC-IN 12V

Touch Screen

Size：15 inch
Ratio：4：3
Resolution：1024 * 768
Brightness ：250cm/m2

Resistive type Touch screen(single Point Touch)，Life time: over 50 Millions

Power Supply

DC 12V (9~36V input optional)

Operating System

Support Windows 7/8/10, Linux

Working Temperature

-10degC - +50degC

Working Humidity

0% - 95% relative humidity, Non-condensing

Size

365*290*55 mm (L*W*H)

Application

Applied inAutomation, ATM, Pos, CNC, Digital signage, kiosk, Energy, telecomommunication, Networking,Transportation etc.

Yanling 15 Inch Taiwan Fanless 5 Wire Resistive Touch Screen AIO Computer Intel J1900 Industrial All-in-one PC with 2 RS232 COM


Pls tell us which power cable you want, thanks


YANLING INDUSTRIAL COMPUTER TECHNOLOGY (SHENZHEN) CO.,LTD is an officially registered and approved large-scale resource-based enterprise, forcus on research and design, producing, processing, marketing and distribution. Main products cover MINISYS mini pc, MINISYS industrial computer, MINISYS embedded pc, all in one pc and network server etc. Our products are widely used in home, office, school, industrial automation, network security, digital signage, transportation, energy, airport, ATM, medical equipment, monitoring etc.

We have established cooperation with lots of enterprises, rely on our strength, reasonable price, excellent service, over 10 years rich experience in R&D and producing. Our products are popular at home and aboard, and our partners are all over the world.

1. According Newest Aliexpress Business Service Agreement informs all products should be showed real price to customs because buyers are responsible for paying tax involved, such as import tax, VAT, etc.
2. Due to the tax problem , buyer refuse to receive the goods, buyer need to responsible for the freight back and forth. Thank you for your cooperation.
3. According to customs rules in Russia , we have to write real price to customs.and buyer have to offer passport information , personal VAT number and link of product to local customs for clearance . Thanks.
4. For German customers, please note that German custom decide to implement the single customs clearance costs for e-commerce goods from Mar.1 2018 . Deutsche Post DHL will charge an additional fee of 6 EUR / set (including VAT) for taxable and hospitality tax on incoming mail.
5. For Swedish customer, please note that the Swedish Customs decided to impose VAT on all non-EU e-commerce items (including mail) starting March 1, 2018 . The implementation of zero-value-added tax threshold, does not distinguish between the level of value, the recipient VAT. If the value of the goods is less than 150 euros , Sweden Post will charge 7.5 euros for services, more than 150 euros, for 12.5 euros service charges e-commerce items.
6. For Brazil customer, please note that the Brazil Customs decided to charge a fee of 15 reais (about 3.5 US dollars) per order for all international parcels handled by the customs from August 27 , local time.You have to pay it within 30 days , otherwise the package will be returned or destroyed . For that, we wont do money refund.
1. We prefer payment through ESCROW which is security way for you.
2. Pls make sure the shipping address , zip code and tel-number are correct before payment.
3. The buyers are responsible for all additional custom fees, brokerage fees, duties and taxes for importation into your country.
4. We also can accept the payment by Paypal if you think Paypal is convenient for you to order. But now only can ship to USA, UK, Italy, Spain, France, Germany .
5. Welcome to contact us by chat tool directly or leave a message if you order in bulk.
6. Refund will be done by Paypal.
1. All items will be double checked and well packed and they will be dispatched within 5 business days when order is paid.
2. Normally we ship package by DHL , it will take about 3~7 working days to most of countries, door to door.
3. If you address is a remote area by DHL, if you do not add remote area shipping fee , we will arrange shipment by our methods , hope you can kindly understand it, thanks.
4. e-EMS: it is for Russia and some other countries.
5.If you choose the shipping way is air post mail , it normally takes 30-90 days without tracking information , pls noticed. It's better to chooseEMS or DHL , more faster and safe .
6. If you don't get the package in normal time, please contact us kindly, we will do our best to assist you.
7. If you don't accept above terms, pls do not buy it, thanks.
1. We provide one year warranty period, repair or replace for free; the second year and the third year , we can repair it free . but we will charge for the parts that need to change.
2. If you are not satisfied with the item and want to return it reasonably, please contact us kindly first . We will try our best to deal with the issue for you or you can exchange or return the item in one week.
3. All returned items must be in its original conditions . Anthropogenic causes as defects are not guaranteed.
4. If you want to return the item, pls confirm the return address with us, we only accept EMS or Post for return product. Thanks.
5. If the product break down , please contact us .
1. We maintain high standards of excellence and strive for 100%customer satisfaction !
2. If you are satisfied with them, please lease 5 star positive feedback
3. Negative feedback or low DSR does no resolve any underlying issues. If you have a problem , please contact us via email firstly and give us the opportunity to reasonably rectify in a reasonable amount of time. We will try to respond ASAP, and we are always willing to work things out.
4. For some uncontrollable factors , the item may be damaged during shipping. If you receive a broken item, please contact us first , we will investigate and replace, if you have any other questions please email us. we will respond within 24 hours or less .
