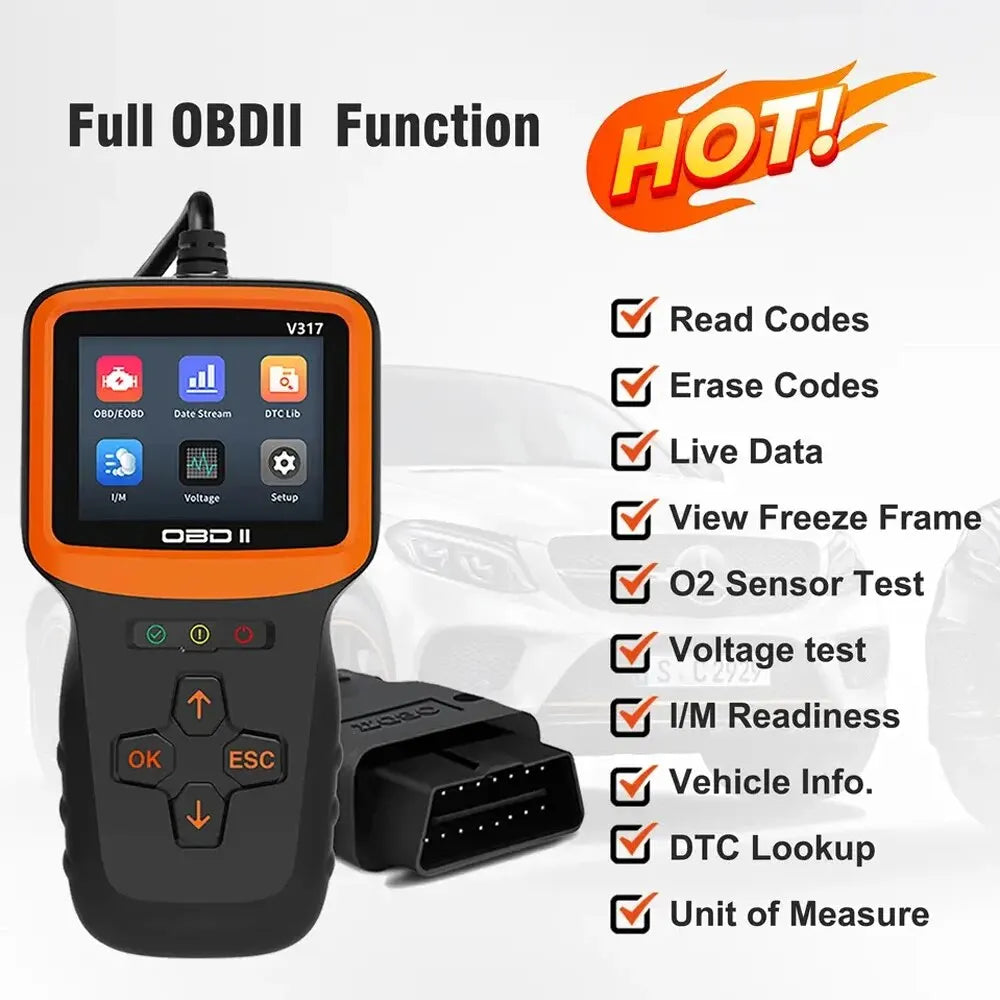

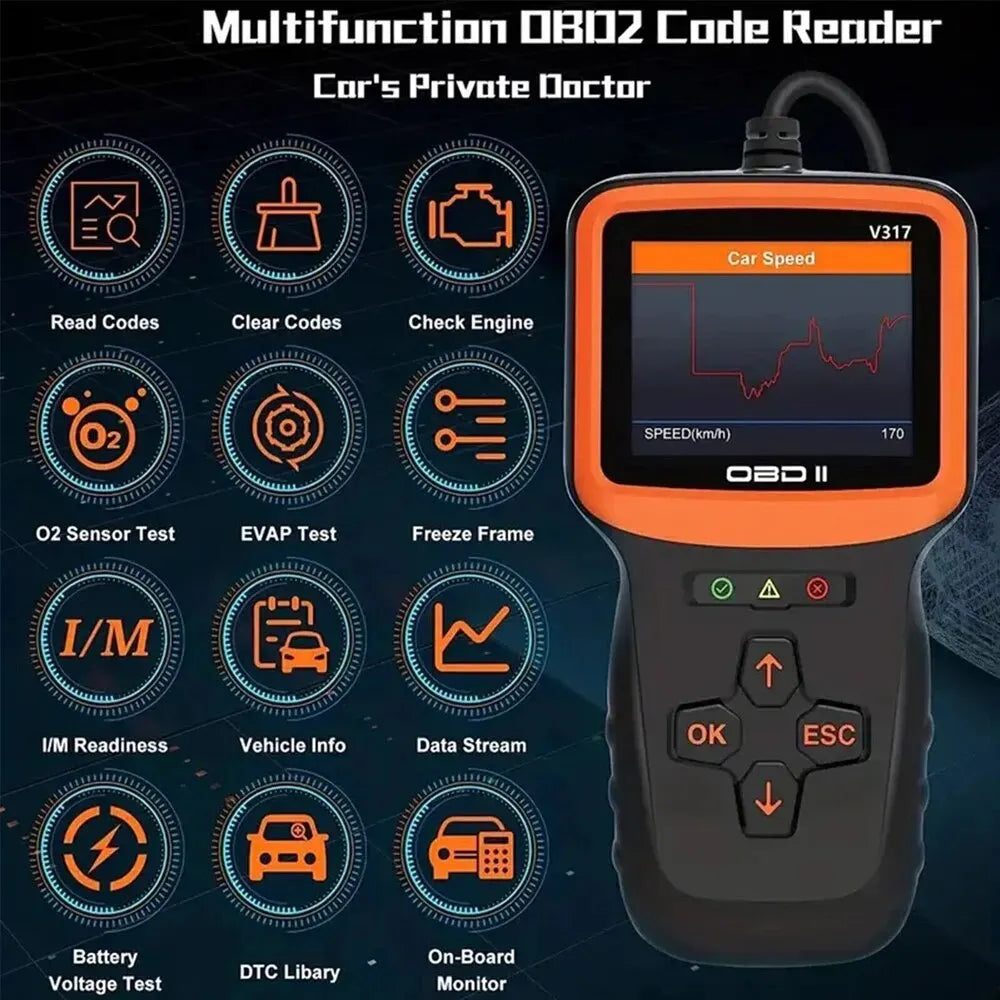

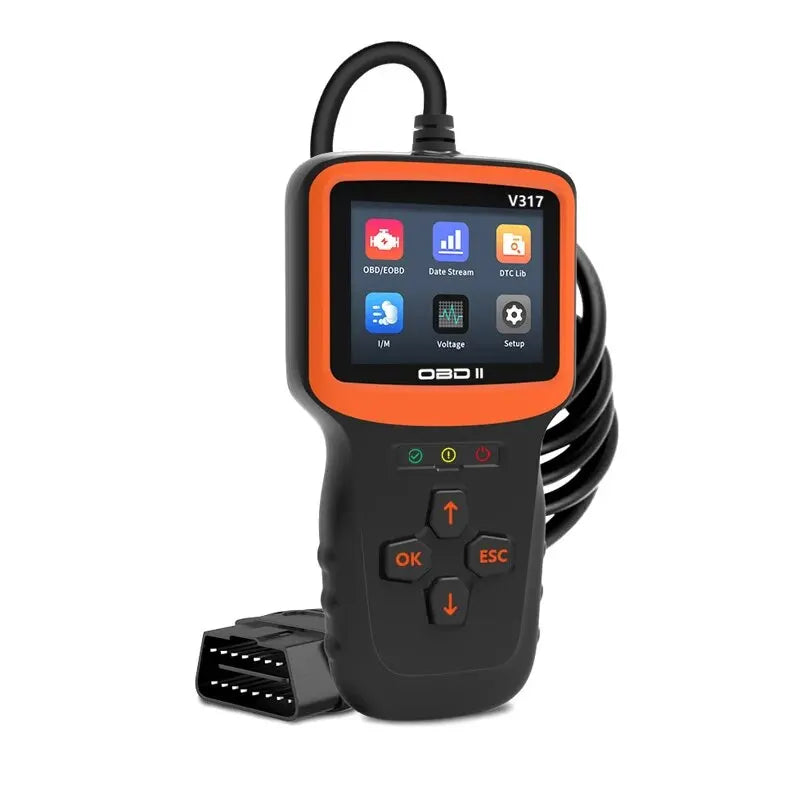

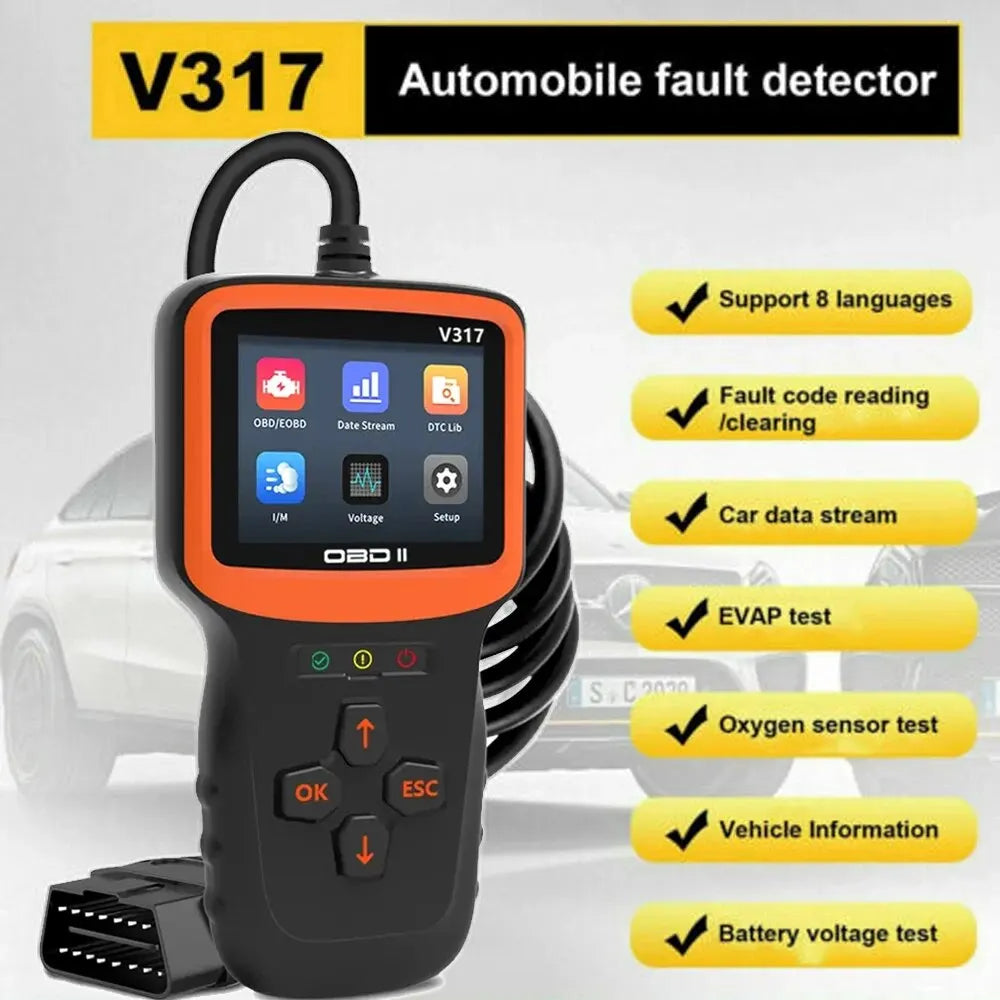

V317 Colour Screen OBD2 Diagnostic Tool Car Scanner Machine Automotive Code Reader Check Engine Fault

V317 OBD2 Scanner Code Reader OBD-II Check Engine Fault Car Diagnostic Tool

Universal Compatibility:

OBD-II Standard Is Supported By The Vehicles(Which Car Support The 9 OBD2 Protocols)

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2(5 baud init, 10.4Kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID, 500 Kbaud)

7. ISO15765-4 CAN (29bit ID, 500 Kbaud)

8. ISO15765-4 CAN (11bit ID, 250 Kbaud)

9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

Features:

1. Support nine standard protocols of OBD II/EOBD.

2. Support 0BD functions such as vehicle fault diagnosis and real-time data streaming.

3. With data storage and playback functions.

4. Data with emission testing.

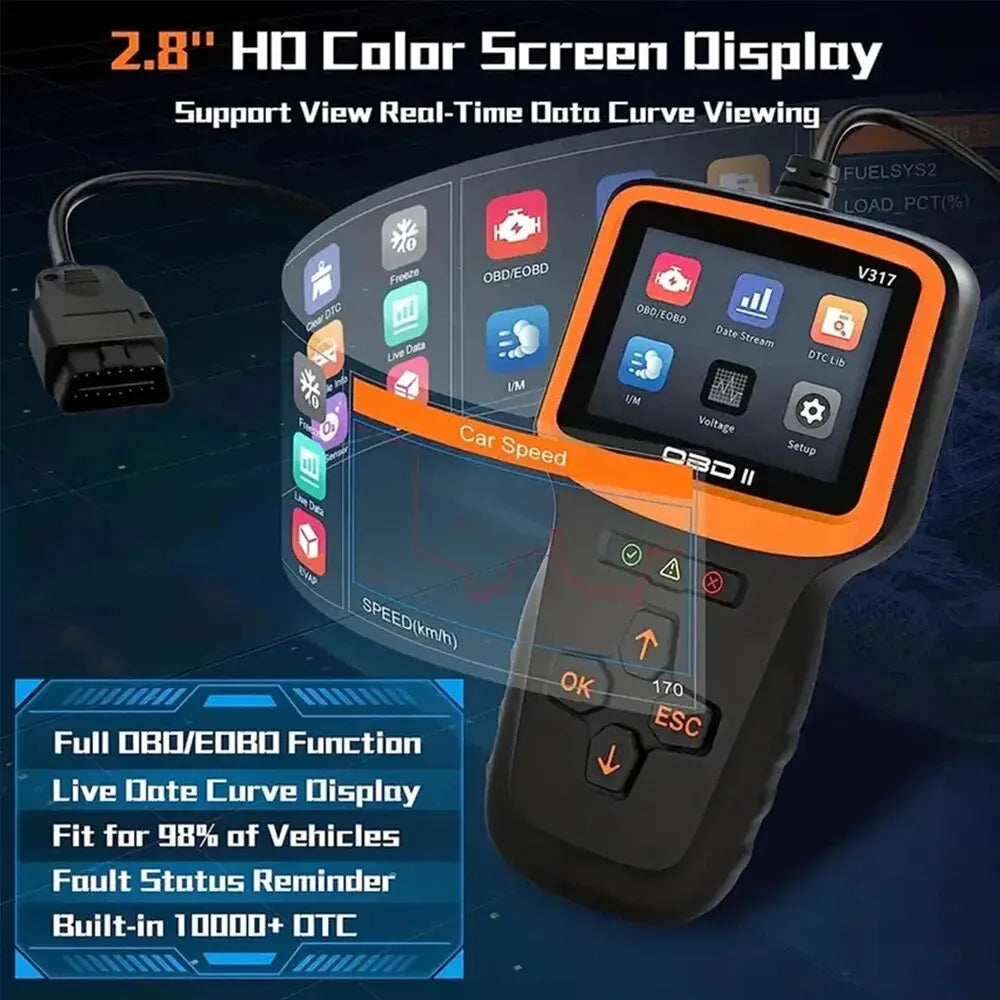

5. 2.8 inch TFT color LCD screen.

6. Support languages: German, Dutch, English, Spanish, French, Italian, Russian, Chinese.

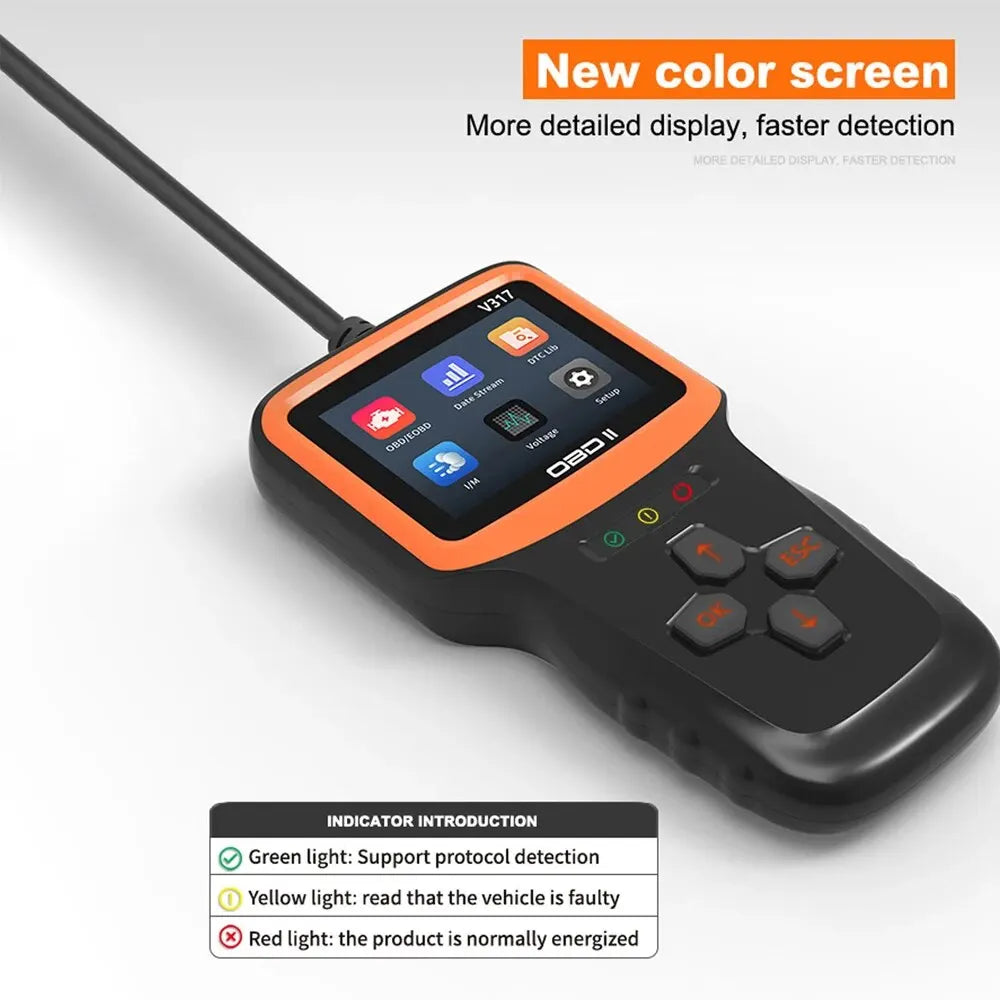

7. The red light represents the power signal light: the yellow light represents the fault code signal light, and the yellow light is on when the fault code is detected: the green light represents the connection adapter signal light. When the product is matched with the car, the green light is on, and the green light is off, which means the model does not match.

Specification:

Model: V317

Working Voltage: 9-16V

Operating Environment: -20~65°C

Storage Temperature: -30~80°C

Product Size: 168*25*89mm

Product Weight: 295g with packaging, 203g bare metal

Packing size: 200*130*43mm

Language Support: English, German, Italian, Dutch, French, Spanish, Chinese, Russian

Package Included:

1 x Car Code Diagnostic Scanner

1 x Manual
